High-Performance Double Glazed Insulated Glass with Sound Reduction 25-40 dB, Energy Efficiency, and Thermal Insulation

High-Performance Energy-Saving Soundproof Double Glazed Insulated Glass for Construction&Windows​

Insulating glass is composed of two or more layers of glass sealed with a hollow aluminum spacer and desiccant, forming a sealed air cavity between the glass panes. It features excellent thermal insulation, sound insulation, energy saving, and anti‑condensation performance.

With high structural strength and good stability, insulating glass effectively reduces heat transfer, blocks outdoor noise, and prevents condensation in low-temperature environments. It is widely used in residential buildings, commercial buildings, curtain walls, windows and doors, and industrial projects.

Our insulating glass complies with international quality standards, providing reliable safety, long service life, and excellent weather resistance. It is an ideal energy-saving building material for modern construction.

​​Structural Composition & Configuration Options​​

1. ​​Standard Construction​​

   • ​​Glass:​​ 2 panes (3-12mm each)

   • ​​Spacer:​​ Aluminum/Stainless Steel (6-20mm width)

   • ​​Sealants:​​ Primary (PIB) + Secondary (Silicone/Polysulfide)

   • ​​Gas Fill:​​ Argon (90%), Krypton (high-performance), or Air

2. ​​Advanced Configurations​​

   • ​​Triple Glazing:​​ 3 panes + 2 cavities (U-value down to 0.4 W/m²K)

   • ​​Asymmetrical:​​ Different thicknesses (e.g., 6mm outer + 8mm inner)

   • ​​Hybrid Units:​​ Combined with Low-E coatings or laminated layers

​​Thermal Performance Metrics​​

Center-of-glass values for 4-12-4 configuration

​​Acoustic Performance Data​​

1. ​​Sound Transmission Class (STC)​​

   • ​​4mm/12mm Air/4mm:​​ STC 32

   • ​​6mm/16mm Argon/6mm:​​ STC 36

   • ​​Laminated Variant:​​ STC 42+

2. ​​Frequency-Specific Attenuation​​

   • ​​500Hz:​​ 25-35dB reduction

   • ​​1000Hz:​​ 30-40dB reduction

   • ​​2000Hz:​​ 35-45dB reduction

​​Spacer Technology Comparison​​

​​Gas Fill Performance​​

​​Manufacturing Standards​​

1. ​​Quality Control​​

   • Moisture vapor transmission <0.05g/m²/day

   • Gas retention >90% after 15 years

   • Sealant adhesion >0.5N/mm²

2. ​​Certifications​​

   • EN 1279 (European IGU standard)

   • ASTM E2190 (North America)

   • GB/T 11944 (China)

   • ISO 20492 (Global performance)

​​Installation Requirements​​

1. ​​Glazing Systems​​

   • Minimum 15mm edge cover

   • Thermal break framing recommended

   • Structural silicone bonding options

2. ​​Environmental Limits​​

   • Maximum altitude: 3000m

   • Temperature range: -40°C to +80°C

   • Pressure differential: ±3000Pa

​​Durability Testing Protocols​​

1. ​​Climate Resistance​​

   • 1000 cycles (-20°C to +60°C)

   • 5000hr humidity exposure (85°C/85%RH)

   • UV aging per ISO 4892-3

2. ​​Structural Testing​​

   • Wind load resistance (EN 12179)

   • Water penetration (ASTM E331)

   • Air infiltration (ASTM E283)

​​Leading Manufacturers​​

1. ​​Guardian Glass (ClimaGuard®)​​

   • U-value as low as 0.5

   • 25-year performance warranty

2. ​​Saint-Gobain (SGG ClimaPlus®)​​

   • Warm edge spacer systems

   • PHI-certified options

3. ​​AGC (EnergyNXT™)​​

   • Triple silver Low-E variants

   • Self-cleaning IGU options

4. ​​NSG (Pilkington Insulight™)​​

   • Krypton-filled units

   • Acoustic-specific designs

​​Sustainability Features​​

• 30% recycled glass content

• Argon from air separation byproducts

• Warm edge spacers reduce edge losses

• Contributes to LEED v4.1 credits:

  • Thermal Performance (EQ)

  • Daylight Optimization (EQ)

​​Failure Modes & Prevention​​

1. ​​Gas Loss​​

   • Cause: Seal failure

   • Prevention: Dual-seal systems

2. ​​Condensation​​

   • Cause: Desiccant saturation

   • Prevention: Molecular sieve quality control

3. ​​Glass Breakage​​

   • Cause: Thermal stress

   • Prevention: Edge deletion for coated glass

​​Technical Support Services​​

1. ​​Performance Modeling​​

   • THERM/WINDOW simulations

   • Condensation risk analysis

2. ​​Custom Engineering​​

   • Curved IGUs (R>1000mm)

   • Structural glazing solutions

3. ​​Quality Verification​​

   • Gas concentration testing

   • Sealant adhesion checks

​

Application Scope:

Insulating glass is widely used in the following fields:

- Residential and commercial building windows and doors

- Curtain walls and facades

- High-rise buildings and office buildings

- Shopping malls, hotels, hospitals and schools

- Industrial buildings and factory facilities

- High-speed rail stations, airports and public buildings

- Energy-saving construction and green building projects

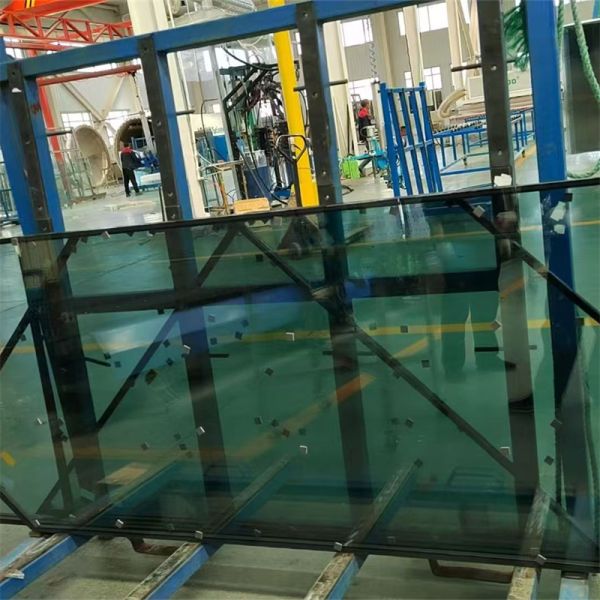

​Glass Pictures:

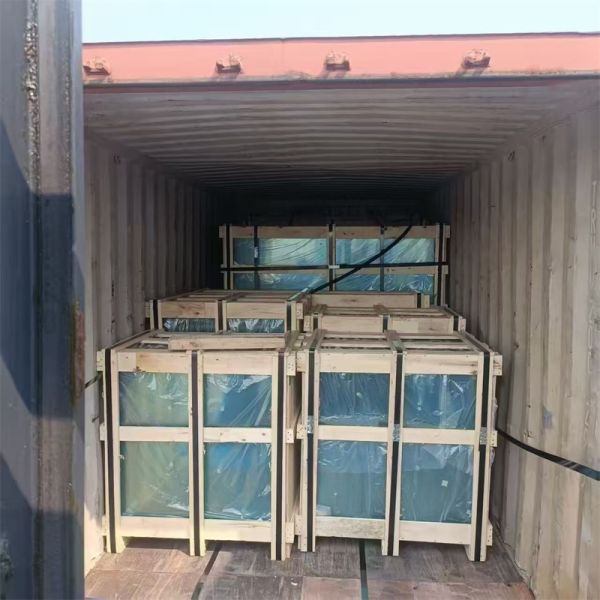

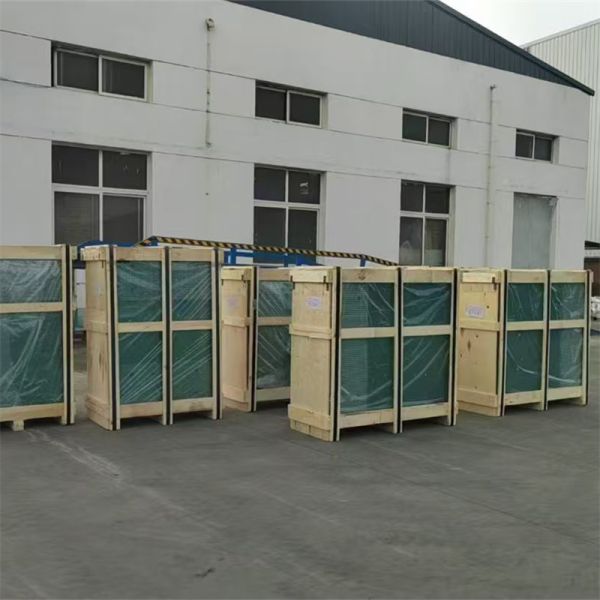

Packaging:

Sound Reduction Double Glazed Insulated Glass

Energy Efficiency Insulating Glass

Thermal Insulation DGU
